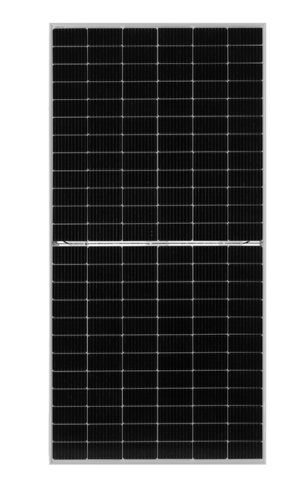

EAGLE 72HM G5b

Half Cell Module

Technical Information

  • Output 525 to 545 Watt
  • Weight 29.4kg (64.82lbs)
  • Dimension 2274×1134×40mm (89.53×44.65×1.57in)
  • Cable Length 12 AWG, 1400mm (55.12in) or Customized Length

Frame

Silver
EAGLE 72HM G5b JKM525-545M-72HL4-TV-F1-US
EAGLE 72HM G5b JKM525-545M-72HL4-TV-F1-US

Description

The EAGLE G5 modules utilize high efficiency half cut cells and our Diamond Half Cell technology. By minimizing white space between cells, we enable module power up to 545W.

Bifacial Added Features

  • Bifacial cell architecture allows backside bonus and more lifetime power yield
  • Transparent back sheet allows easier installation BOS cost
  • Thick front side glass and 40mm frame
  • 55mm Hailstones at 34m/s

Key Features

Multi Busbar Half Cell Technology
High efficiency half cut solar cells deliver high power in a small footprint

Bifacial Power Gain
Bifacial cell architecture allows backside bonus and more lifetime power yield

Light-Weight Design
Use of transparent backsheet allows for easy installation and lower BOS cost

Thick and Tough
Fire Type 1 rated module engineered with a thick frame, 3.2mm front side glass, and thick backsheet for added durability

Shade Tolerant
Twin array design allows continued performance even with shading by trees or debris

Protected Against All Environments
Certified to withstand humidity, heat, rain, marine environments, wind, hailstorms, and packed snow (55mm Hailstones at 34m/s)
